Project Overview
Status: Phase 1 Completed

Practice Exploration

Visual walkthrough of the initial ArgoCD exploration, configuration, and multi-environment deployment simulation.

ArgoCD Journey Visual Walkthrough (v1)

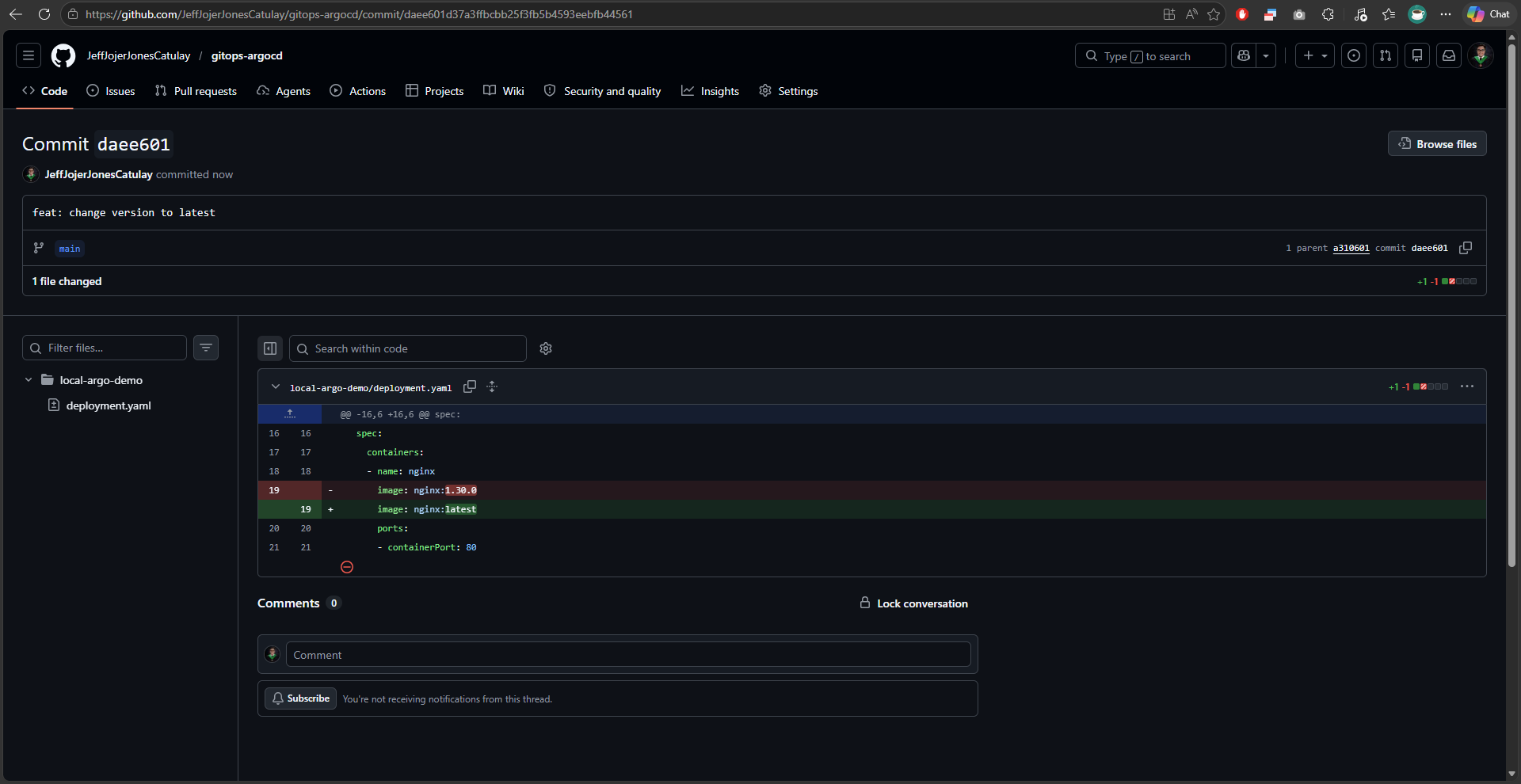

1. Git Commit Trigger

The Git commit pushing the updated code, which acts as the trigger for ArgoCD.

Git Commit Trigger

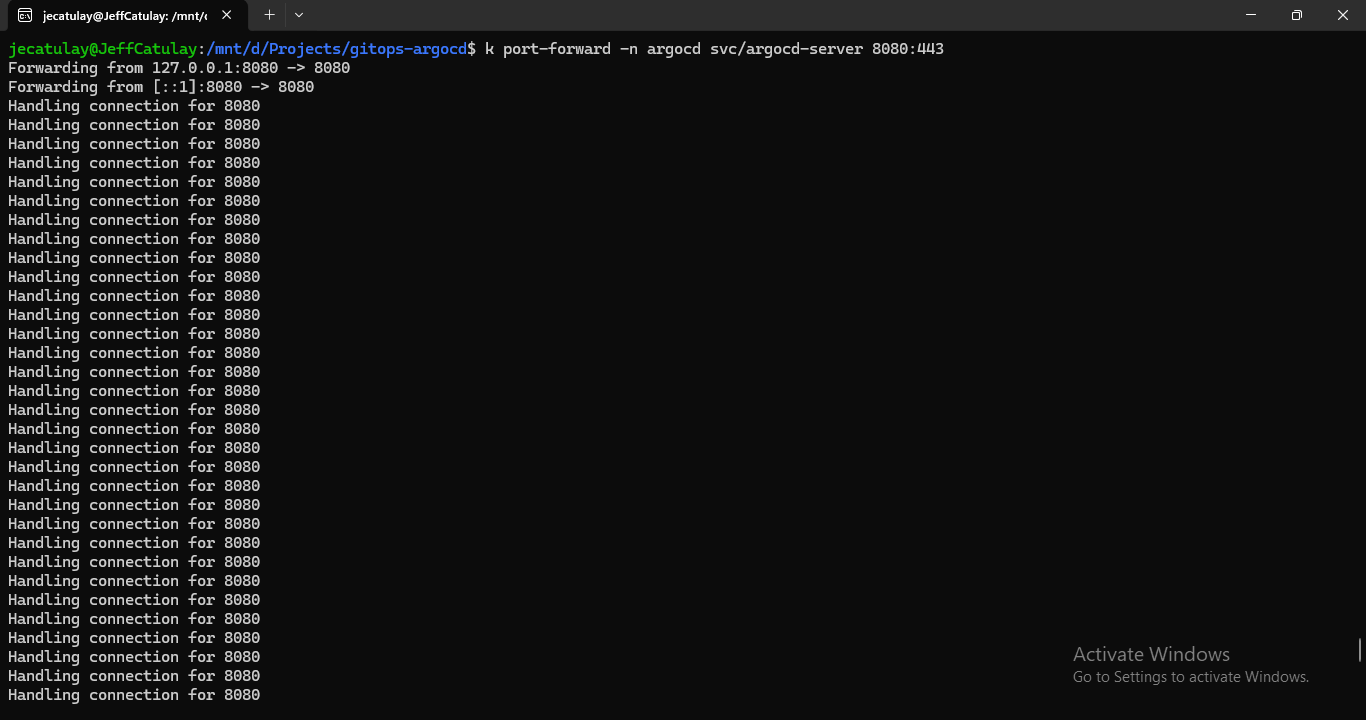

2. Port Forwarding Argo Server

Forwarding local traffic to the ArgoCD server to access the dashboard.

Port Forwarding Argo Server

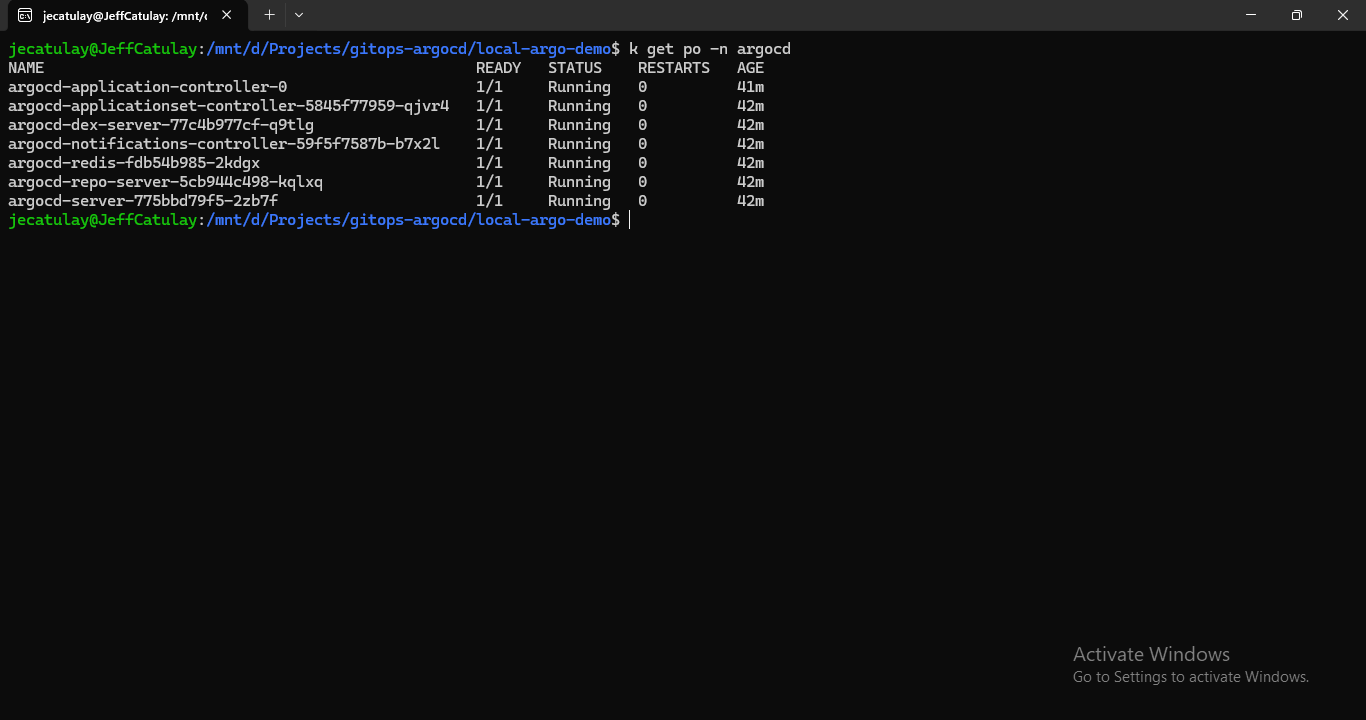

3. Running ArgoCD Pods

Status of the core ArgoCD pods running within the cluster.

Running ArgoCD Pods

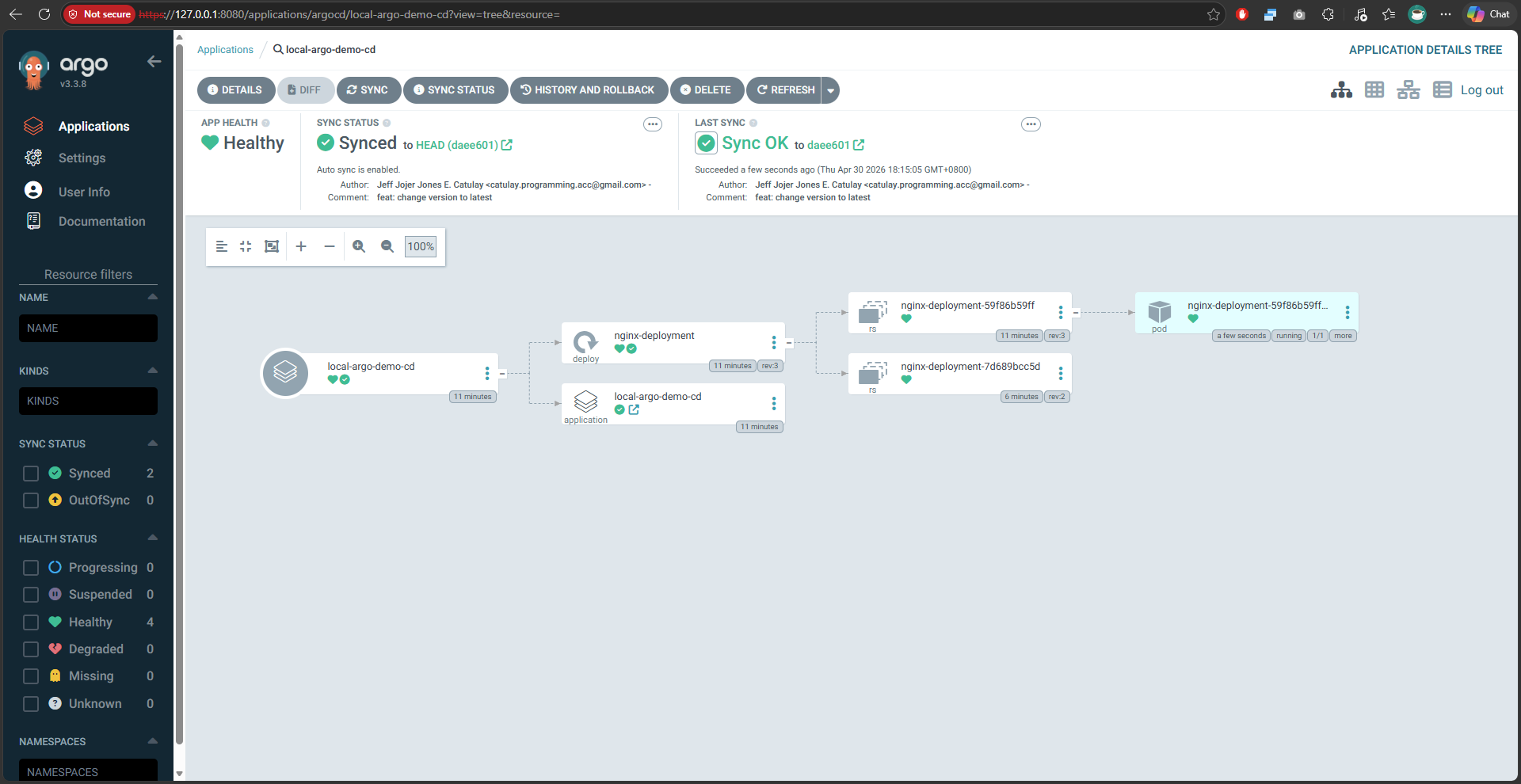

4. ArgoCD Interface

The main ArgoCD web interface showing the application dashboard.

ArgoCD Interface

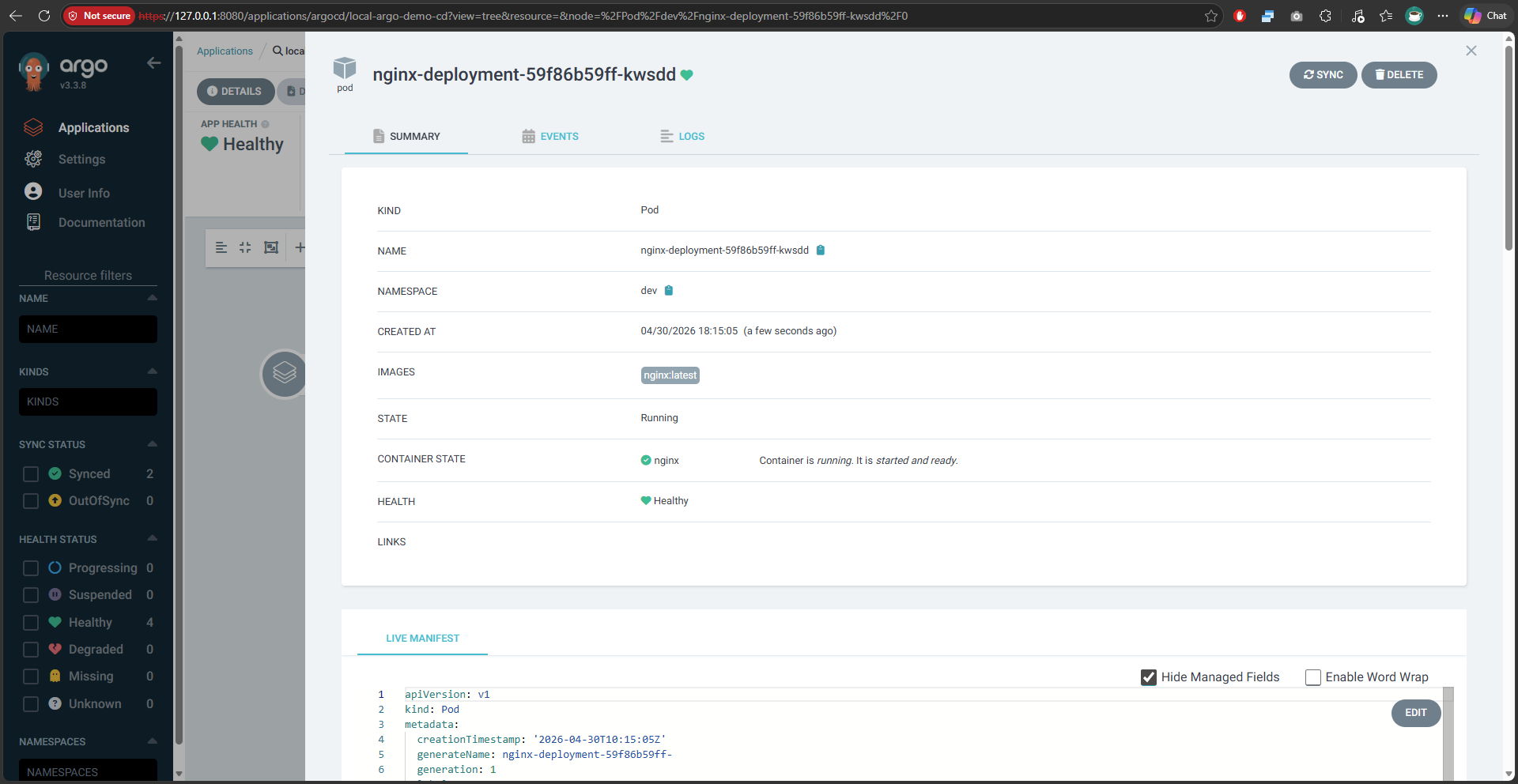

5. Deployment Update of the Pods

Visualizing the rollout of the updated deployment within the ArgoCD UI.

Deployment Update of the Pods

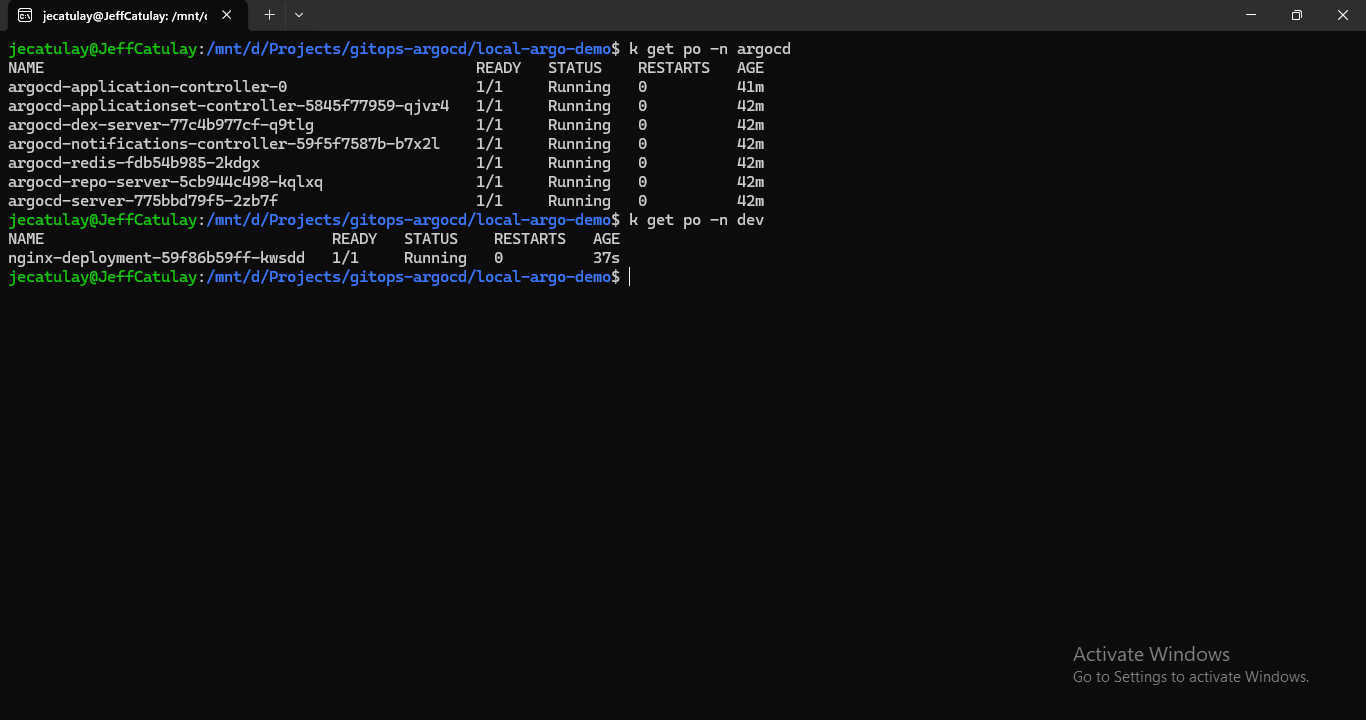

6. Running Pod States

The final healthy and synchronized state of the application pods.

Running Pod States
