pfm-database

Personal Finance Manager – Database

This repository contains the database layer for the Personal Finance Manager project.
It provides the foundational structure for storing and managing financial data across the system.

⚠️ Note: This is a work in progress and part of the larger Personal Finance Manager ecosystem.
It serves as a general-purpose repository for database schemas, migrations, and configurations.

Overview

The database module is designed to:

• 🗄️ Store financial records such as income, expenses, budgets, and savings
• 🔍 Support queries for reporting and analytics
• 🔒 Ensure data integrity and security
• 🔄 Provide a consistent foundation for other modules (frontend, backend, analytics)

Contents

• Schemas – Definitions of tables and relationships
• Migrations – Version-controlled updates to the database structure
• Seed Data – Sample datasets for testing and development
• Configuration – Environment and connection settings

Database Information

• MySQL Workbench 8.0

ERD Tool

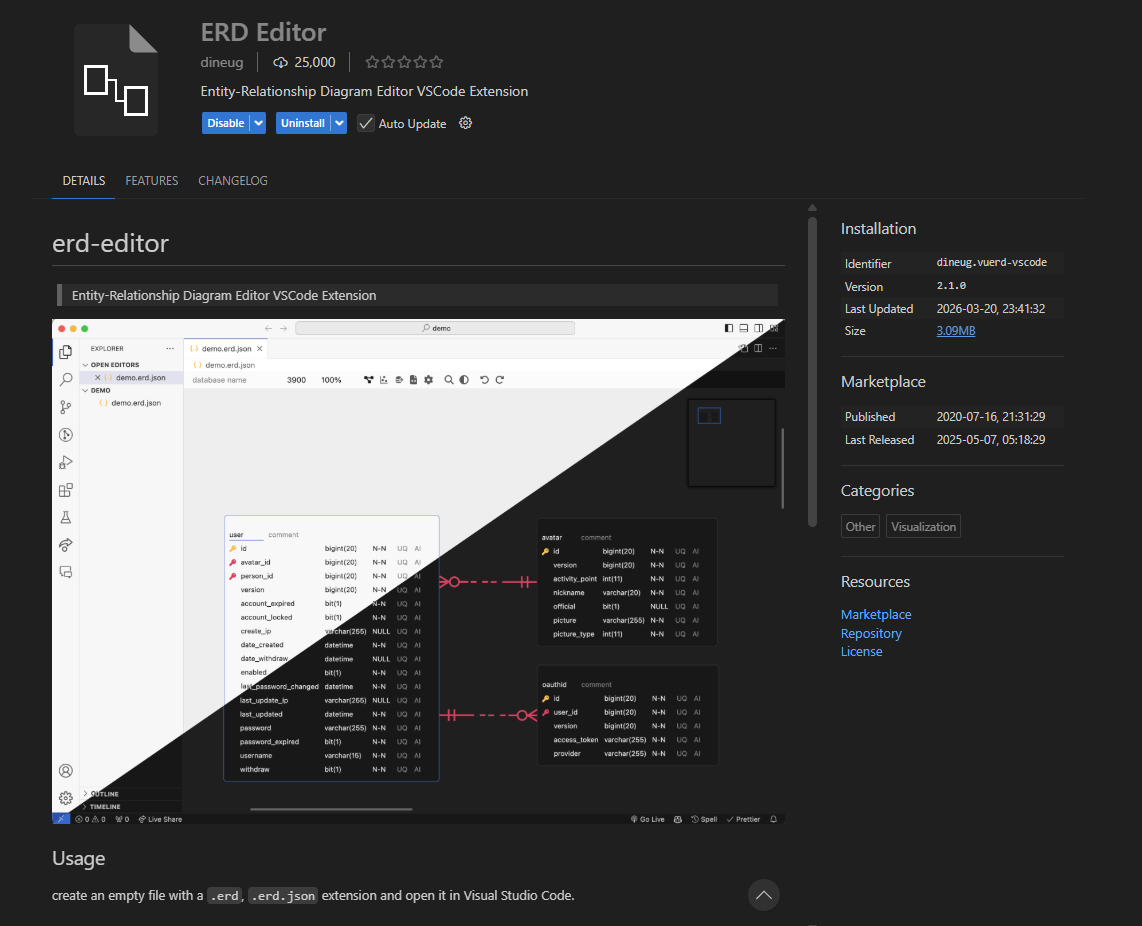

• Use ERD Editor extension on VS Code or Cursor IDE

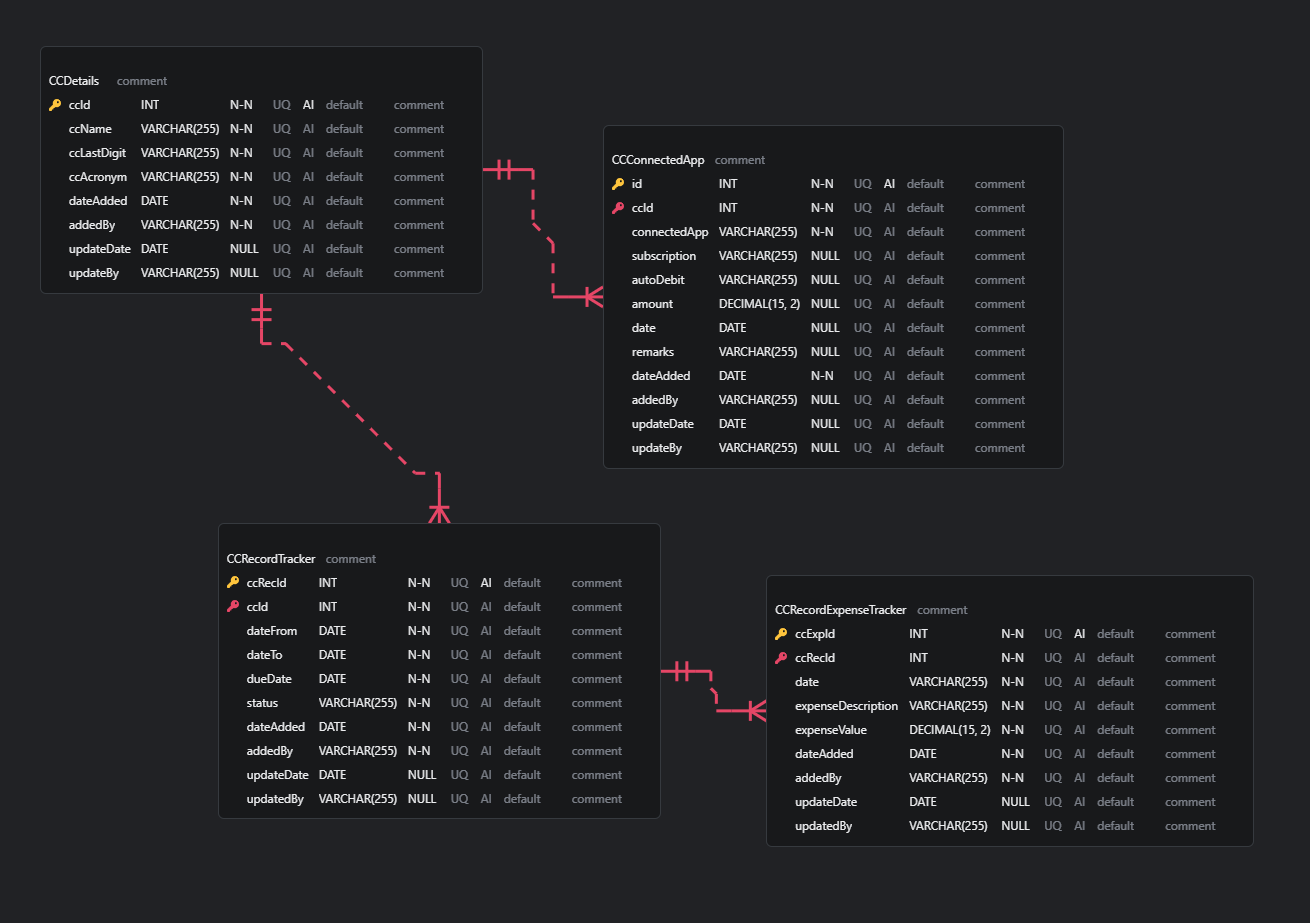

ERD - Credit Card Related Tables

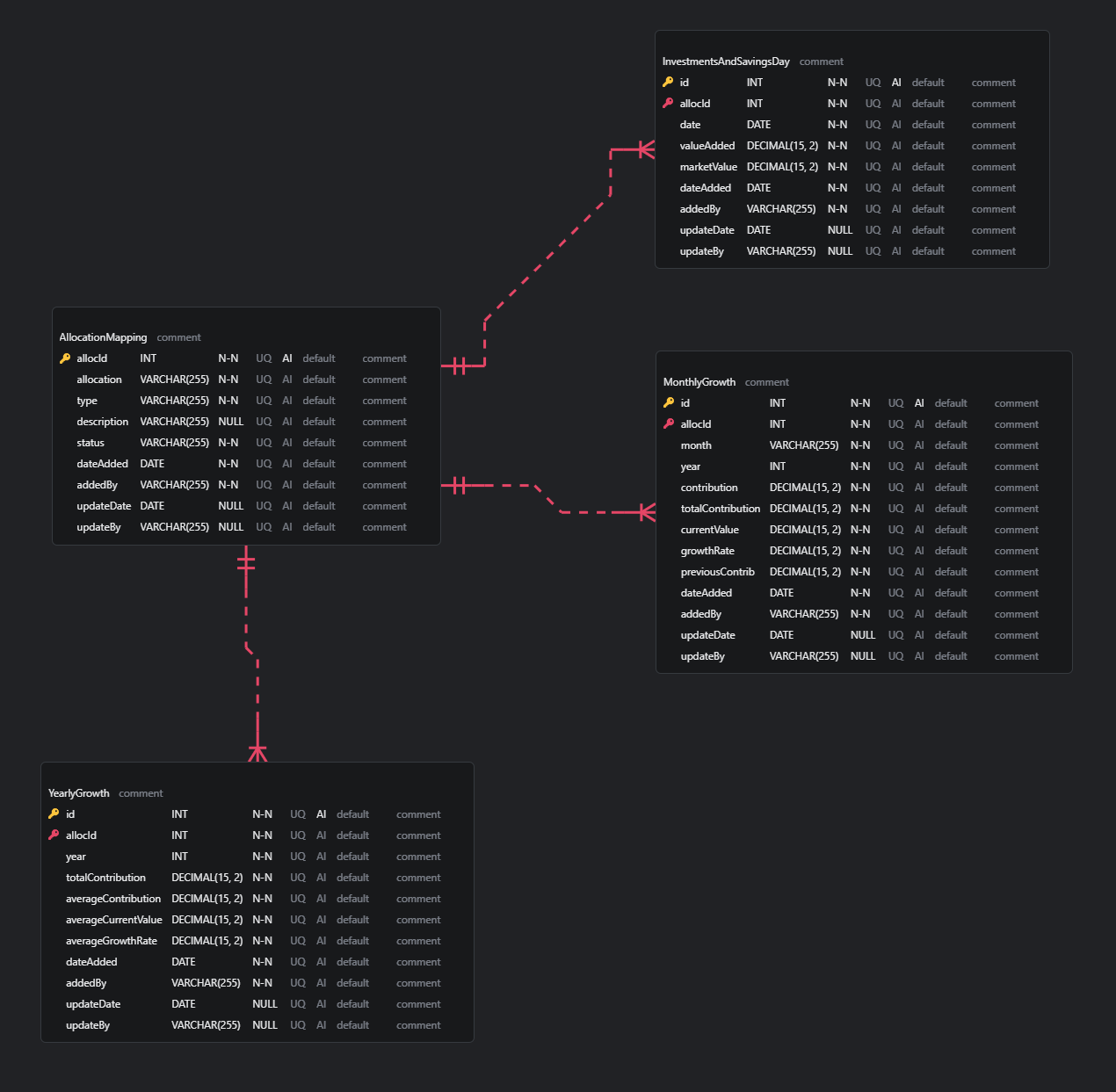

ERD - Investment/Savings Related Tables

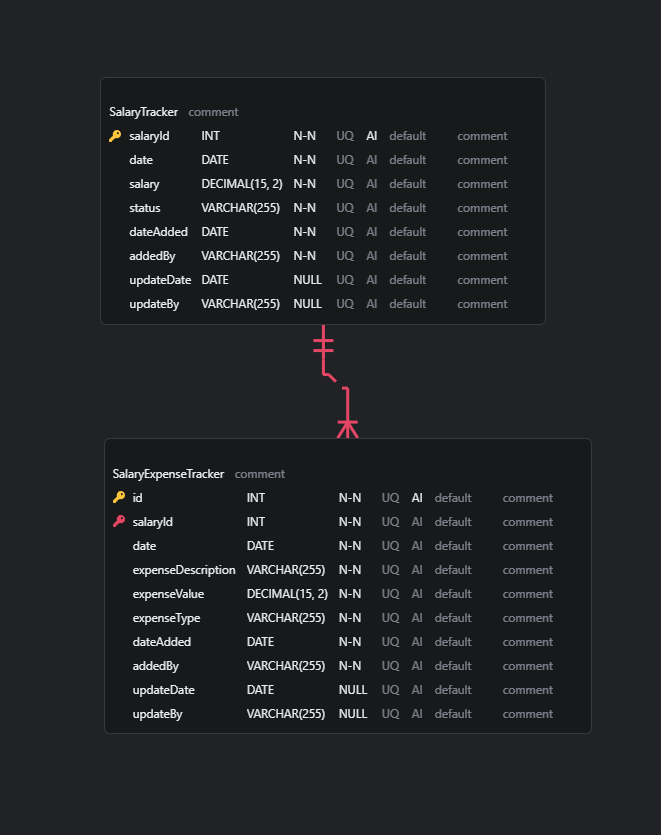

ERD - Salary Related Tables

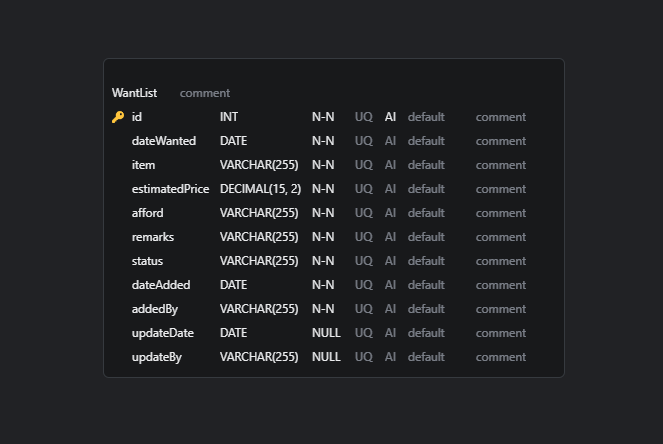

ERD - Want List Related Tables

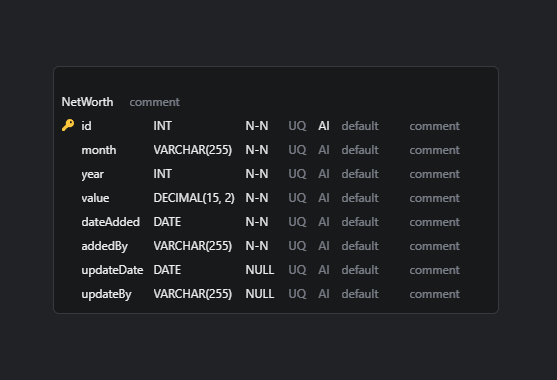

ERD - Networth Table

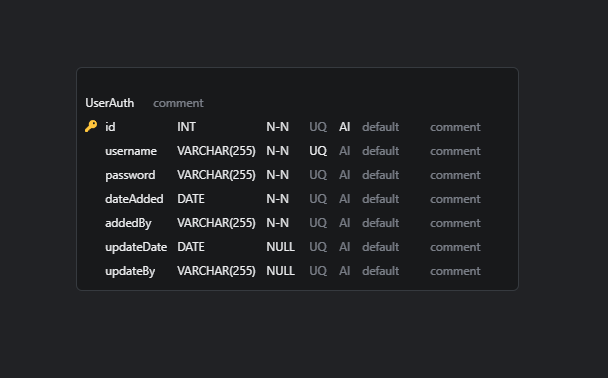

ERD - User Auth Related Tables

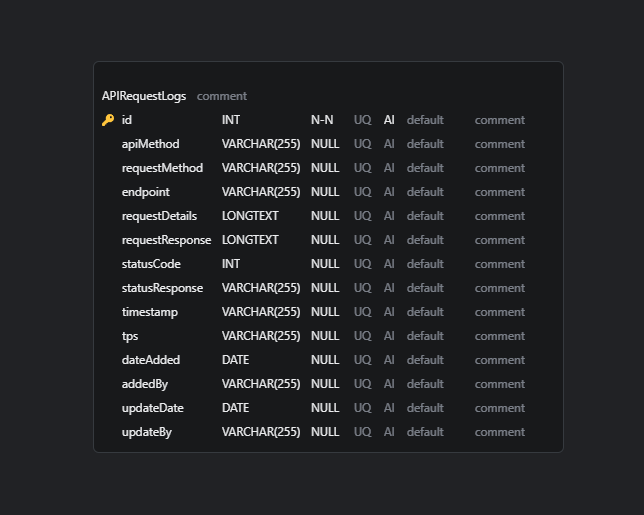

ERD - API Request Logs Table
